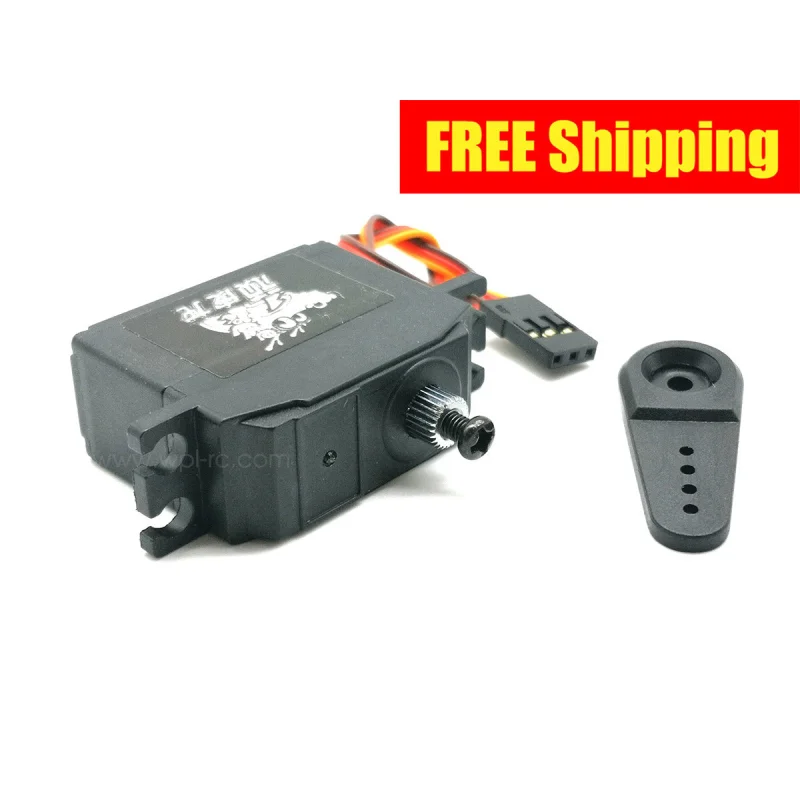

Metal Gear Servo Reliable Steering That Wont Quit
Plastic servos often strip their gears under stress especially when crawling or hitting obstacles. A metal gear servo gives you tough, precise steering and peace of mind. No more ruined trail days because your steering gave out.

25gram Servo

Signal : Digital

Gears : Metal

Compatible for C34, C44KM, New C54/C54-1 RTR, C44 RTR. For Steering.

Note : For C54 and C54-1

a. if your version has non adjustable shock, use 17g servo, not this 25g servo.

b. if your version has adjustable shock, it's the newer version, use this 25g servo.

*** Pls ensure the aftermarket ESC you use has more than 1A current supply from the 5V BEC otherwise this 25g high torque servo may notfunction normally. Or just useRES-V3for peace of mind

Specification,Dead band: 2s
Working frequence: 1520s / 330hz
Operating Speed (4.8V): 0.12sec/60
Operating Speed (6V): 0.10 sec/60
Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)
Stall Torque (6V): 4.52kg.cm (62.7oz/in)
Dimensions: 35.5X15X30mm
Weight: 25.65 g (0.90oz)
Connector Wire Length: JR 180 mm (7.09in)
Bearing: 2BBOutput shaft : 25T
